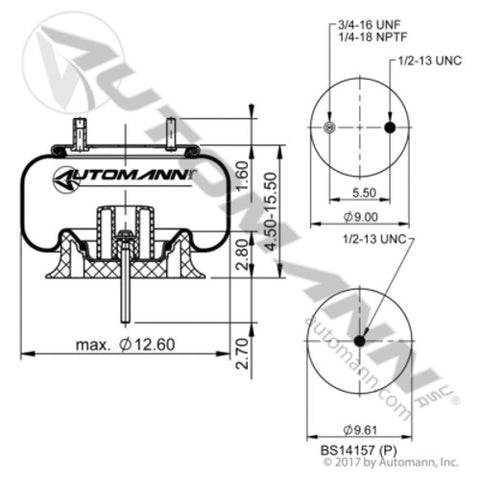

Automann Phoenix AB1DK23I-P978 Air Spring Rolling Lobe

Automann Bellows# : 1DK23I
Bottom Part # : BS14157
Bottom Plate C to C Dia. (D) : N/A
Bottom Plate Dia. (C) : 9.61
Bottom Plate Hole/Stud Qty : 1
Bottom Plate Type : Plastic
Bracket : N/A
Bumper : Yes
Contitech Bellows# : 9 10-13.5
Design Height (In) : 8.50
Load (Lbs)
100 PSI : 7200
Load (Lbs)
80 PSI : 5700
Max. Dia. : 12.60
Max. Height : 15.50
Min. Height : 4.50
Natural Freq. (CPM) : 78
Top Plate C to C Dia. (B) : 5.50
Top Plate Dia. (A) : 9.00
Top Plate Hole/Stud Qty : 2
Type : Rolling Lobe

• Part number: AB1DK23I-P978
• OE MFG: Contitech
• OEM Reference: 910135P978
• Cross Reference: CONTITECH : 68152, 910135P978; NEWAY : 90557342, 90557375 |
